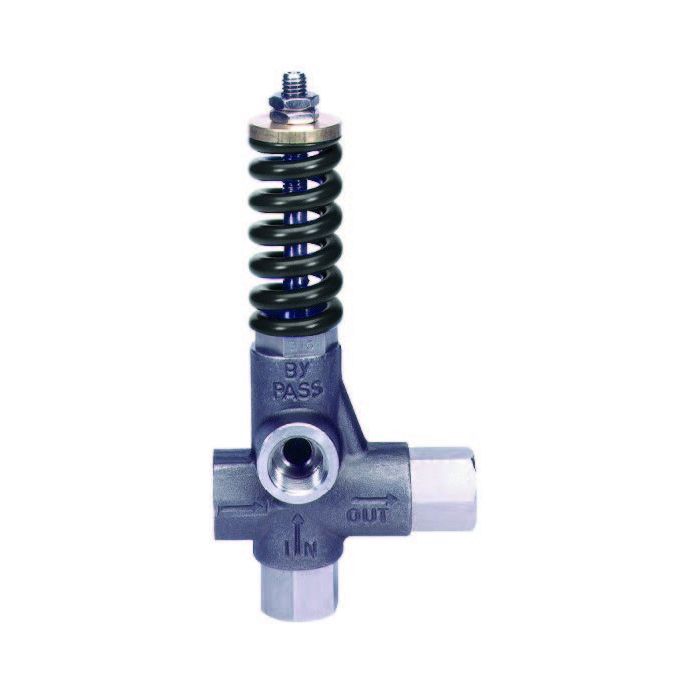

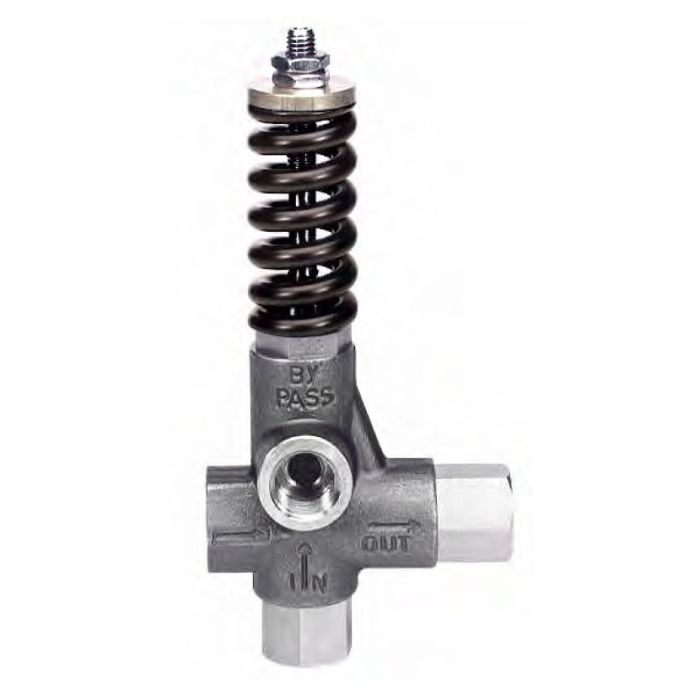

UNLOADER VALVE VB 80 400BAR G1/2F SS + OR VITON - 60.0455.80
€426.00
In stock
SKU
60.0455.80
UNLOADER VALVE VB80 400 BAR G1/2F S.S. VITON
Material SS AISI 303
Seals material FKM ( Viton )
| SKU | 60.0455.80 |
|---|---|
| Manufacturer SKU | 60.0455.80 |
| Thread tipe | F |
| Thread | 1/2" - 1/2" |
| Connections | IN G1/2" F - OUT G1/2" F |
| Rated Pressure | 400 BAR - 40 MPa - 5800 psi |
| Rated Flow Rate | 80 l/min - 21 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | S.Steel |
| Plastic knob (P.Regulators) | No |
| Manufacturer/Brand | P.A. Italy |
| Made in | Italy |
UNLOADER VALVE VB80 400 BAR G1/2F S.S. VITON
Material SS AISI 303
Seals material FKM ( Viton )
Pressure regulating valve equipped with double connection for inlet port.
At gun shut off, the water flow is bypassed at reduced pressure.
The valve has been designed for a continuous use at a water temperature of 60°C. It can resist for sh ort periods at a maximum temperature of 90°C.
- Sturdy construction in SS Aisi 303
- Return action of the piston by means of a powerful spring, for
confident working and a reliable pressure adjustment. - Multiple connections for easy installation.
- Hexagonal shaped check valve to avoid jamming.
