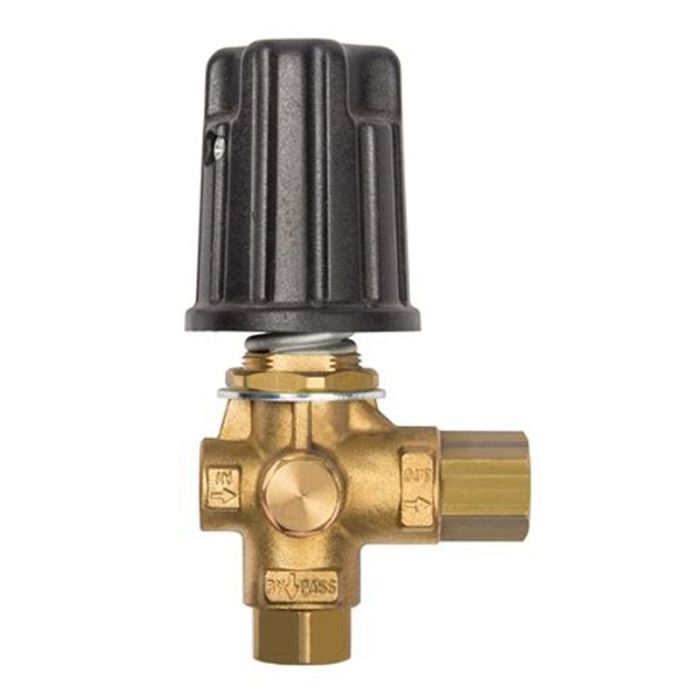

UNLOADER VALVE VB9 +KNOB +CONNECTOR TO PANEL +ADJUST - 220 BAR - 60.2250.00

€100.80
In stock
SKU
60.2250.00

UNLOADER VALVE VB9 +KNOB +CONNECTOR TO PANEL +ADJUST - 220 BAR

*** PANEL MOUNTING ***

More Information
SKU 60.2250.00
Manufacturer SKU 60.2250.00
Thread tipe F
Thread 3/8" - 3/8"
Connections IN G3/8" F - OUT G3/8" F - BYPASS G3/8" F
Rated Pressure 280 BAR - 28 MPa - 4050 psi
Rated Flow Rate 30 l/min - 8 USGpm
Rated Temperature 90 °C - 195 °F
Pressure type category High pressure
Material Brass
Plastic knob (P.Regulators) Yes
Manufacturer/Brand P.A. Italy
Made in Italy

UNLOADER VALVE VB9 +KNOB +CONNECTOR TO PANEL +ADJUST - 220 BAR

*** PANEL MOUNTING ***

Pressure regulating unloader valve with port for pressure gauge.
At gun shut off, the water flow is bypassed at reduced pressure.

The valve has been designed for a continuous use at a water temperature of 60°C. It can resist for short periods at a maximum temperature of 90°C.

  • Sturdy steel and brass construction
  • Resetting of bypass at around 40 bar – 4 MPa which allows periods of non labour before the release for bypass setting.
  • Hexagonal shaped check valve to avoid jamming.
  • Version with knob, fitted with locknuts for min. and max. pressure regulation.
