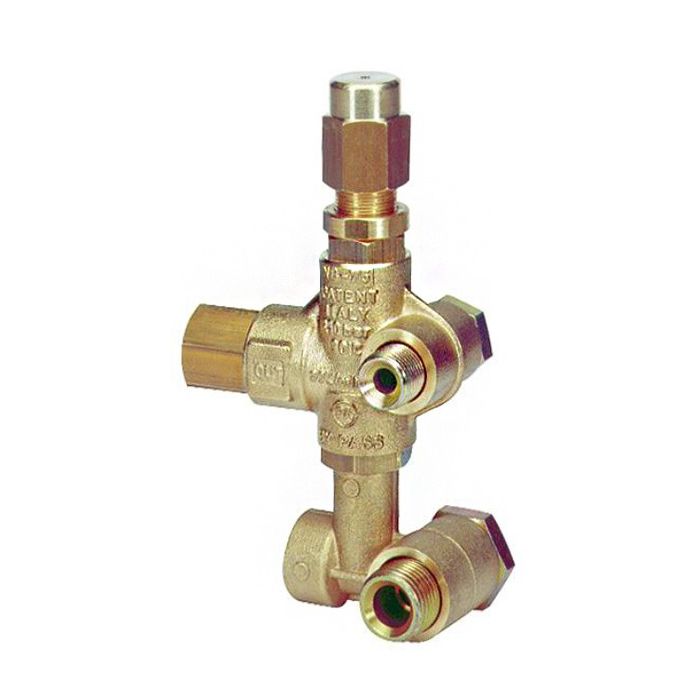

UNLOADER VALVE VB75 (Interpump series 44-47-50-60-63) - 60.0930.00
€109.20
In stock
SKU
60.0930.00
VB75 UNLOADER VALVE (Interpump serie 44-47-50-60-63) distance x:18 y:63 - 200 BAR - 30 LPM
| SKU | 60.0930.00 |
|---|---|
| Manufacturer SKU | 60.0930.00 |
| Thread tipe | FM |
| Thread | 3/8" - 1/2" |
| Connections | IN G3/8" - OUT G1/2" |
| Rated Pressure | 220 BAR - 22 MPa - 3200 psi |
| Rated Flow Rate | 30 l/min - 8 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | No |
| Manufacturer/Brand | P.A. Italy |
| Made in | Italy |
VB75 UNLOADER VALVE (Interpump serie 44-47-50-60-63) distance x:18 y:63 - 200 BAR - 30 LPM
Pressure regulating unloader valve complete with metallic intake manifold.
At gun shut off, the water flow is bypassed at reduced pressure.
The valve has been designed for a continuous use at a water temperature of 60°C. It can resist for short periods at a maximum temperature of 90°C.
- Direct fitting to the pump by means of two hollow screws
- Sturdy steel and brass construction
- Adjustable locknut to control the max pressure
*** Other version available on demand (as per the datasheet) ***
