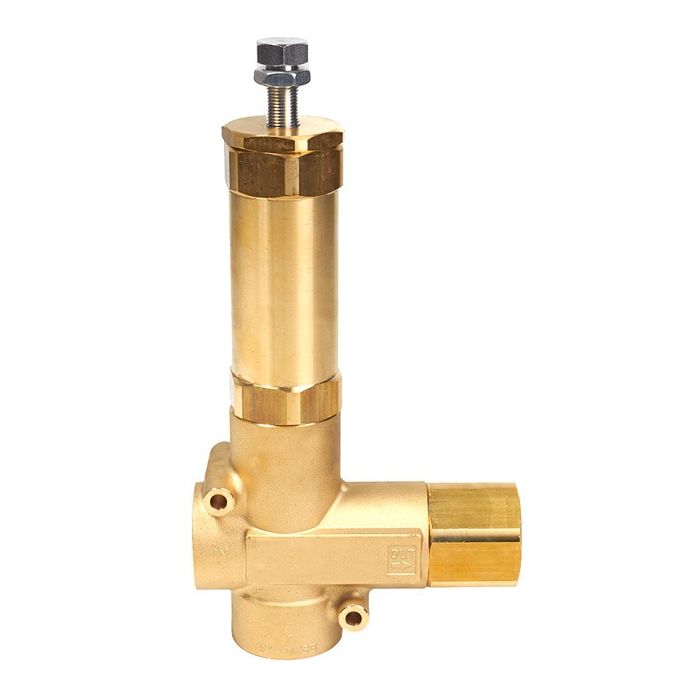

UNLOADER VALVE VB 200/150 FF 1"G - 150BAR 200 LPM - 60.5000.15
€277.20
In stock
SKU
60.5000.15
UNLOADER VALVE VB 200/150 FF 1"G - 150BAR 200 LPM
| SKU | 60.5000.15 |
|---|---|
| Manufacturer SKU | 60.5000.15 |
| Thread tipe | F |
| Thread | 1/2" - 1/2" |
| Connections | IN G1" F - OUT G1" F - BYPASS G1" F |
| Rated Pressure | 150 BAR - 15 MPa - 2200 psi |
| Rated Flow Rate | 200 l/min - 53 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | No |
| Manufacturer/Brand | P.A. Italy |
| Made in | Italy |
UNLOADER VALVE VB 200/150 FF 1"G - 150BAR 200 LPM
Pressure regulating unloader valve
At gun shut off, the water flow is bypassed at reduced pressure.
The valve has been designed for a continuous use at a water temperature of 60°C. It can resist for short periods at a maximum temperature of 90°C.
- Sturdy steel and brass construction
- Hexagonal shaped check valve to avoid jamming.
- Max pressure adjustment by screw and locknut
- Model with manual set up simplified by a handwheel
