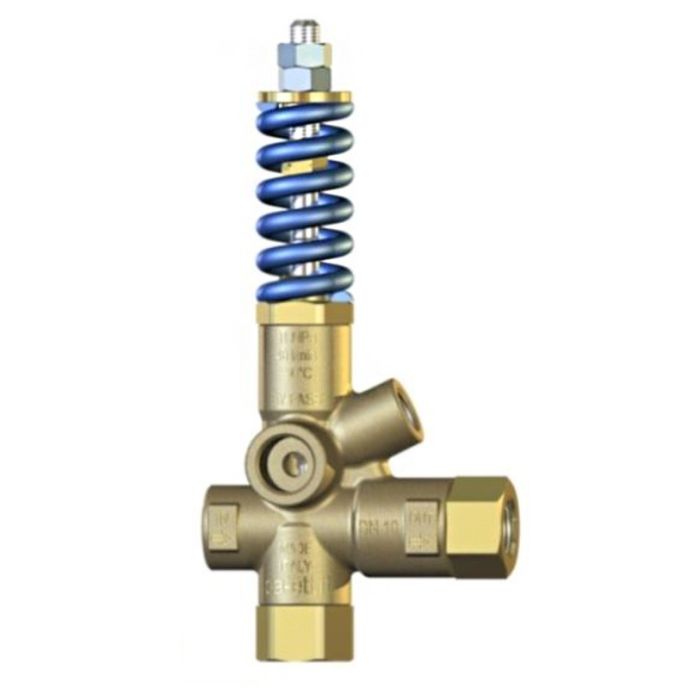

UNLOADER VALVE PULSAR RV G3/8F PRES. GAUGE HOLE G1/4 BLUE SPRING 280 BAR - 60.0045.60
€83.10
In stock
SKU
60.0045.60
UNLOADER VALVE PULSAR RV G3/8F PRES. GAUGE HOLE G1/4 BLUE SPRING 280 BAR - 40 LPM - Blue spring
| SKU | 60.0045.60 |
|---|---|
| Manufacturer SKU | 60.0045.60 |
| Thread tipe | F |
| Thread | 3/8" - 3/8" |
| Connections | IN G3/8" F - OUT G3/8" F |
| Gauge connection | G 1/4" F |
| Rated Pressure | 280 BAR - 28 MPa - 4050 psi |
| Rated Flow Rate | 40 l/min - 10 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | No |
| Manufacturer/Brand | P.A. Italy |
UNLOADER VALVE PULSAR RV G3/8F PRES. GAUGE HOLE G1/4 BLUE SPRING 280 BAR - 40 LPM - Blue spring
Pressure regulating valve with gauge port (Unloader). At gun closure, the waterflow is discharged in bypass reducing the pressure in the system upstream of the valve.
The valve has been designed for a continuous use with water at a temperature of 60°C (140°F). It can work for
short periods with water at the maximum temperature of 90°C (195°F).
- Optimized internal passages that guarantee reduced pressure loss.
- Antirotation device of the piston positioned inside the valve and obtained by a hexagonal sector of the piston itself.
- O-rings of the fittings positioned upstream to the thread: no risk of fittings ejected in case of overpressure.
- Double feed connection.
- Version with knob fitted with locknut for minimum working pressure adjustment.
- G1/4” F gauge port connexion.
