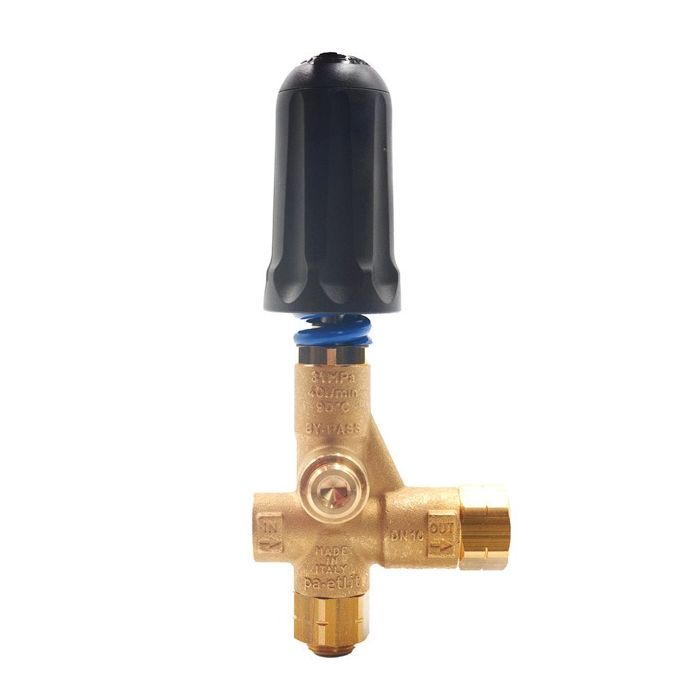

UNLOADER VALVE PULSAR RV BYPASS G3/8F +KNOB -280 BAR BLUE SPRING - 60.0007.60

€84.00
In stock
SKU
60.0007.60

UNLOADER VALVE PULSAR RV G3/8 FF BLUE SPRING - 280 BAR - 40 LPM

More Information
SKU 60.0007.60
Manufacturer SKU 60.0007.60
Thread tipe F
Thread 3/8" - 3/8"
Connections IN G3/8" F - OUT G3/8" F
Rated Pressure 280 BAR - 28 MPa - 4050 psi
Rated Flow Rate 40 l/min - 10 USGpm
Rated Temperature 90 °C - 195 °F
Pressure type category High pressure
Material Brass
Plastic knob (P.Regulators) Yes
Manufacturer/Brand P.A. Italy
Made in Italy

UNLOADER VALVE PULSAR RV G3/8 FF BLUE SPRING - 280 BAR - 40 LPM

Unloader type pressure regulating valve. When the gun is closed, the water flow is discharged into the bypass, lowering the pressure of the circuit upstream of the valve.

The valve has been designed for a continuous use with water at a temperature of 60°C (140°F). It can work for short periods with water at the maximum temperature of 90°C (195°F).

  • Optimized internal passages that guarantee reduced pressure loss.
  • Antirotation device of the piston positioned inside the valve and obtained by an hexagonal sector of the piston itself.
  • O-rings of the fittings positioned upstream to the thread: no risk of fittings ejected in case of overpressure.
  • Double bypass connection.
