UNLOADER VALVE Banjo connection VRF2 G3/8M G3/8F 310 BAR - 4072401000
€42.00
In stock
SKU
4072401000

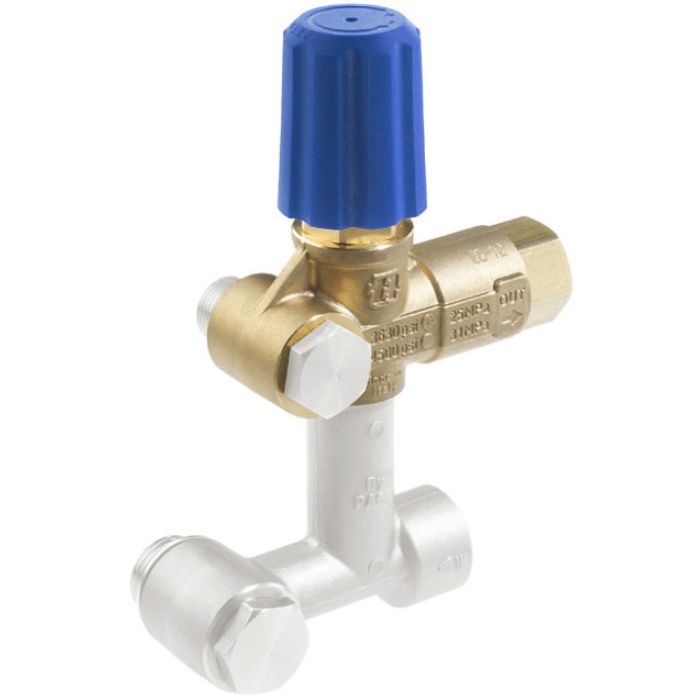

UNLOADER VALVE Banjo connection VRF2 G3/8M G3/8F BLUE knob 310 BAR 30 LPM
| SKU | 4072401000 |
|---|---|
| Manufacturer SKU | 4072401000 |
| Thread tipe | FM |
| Thread | 3/8" - 3/8" |
| Connections | OUT G 3/8 F PUMP G 3/8 M |
| Rated Pressure | 310 BAR - 31 MPa - 4500 psi |
| Rated Flow Rate | 30 l/min - 8 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | Yes |
| Manufacturer/Brand | TecoMec |
| Made in | Italy |
UNLOADER VALVE Banjo connection VRF2 G3/8M G3/8F BLUE knob 310 BAR 30 LPM
Pressure regulating unloader valve w/o manifold.
At gun shut off, the water flow is bypassed at reduced pressure.
The valve has been designed for a continuous use at a water temperature of 60°C. It can resist for short periods at a maximum temperature of 90°C.
- Direct fitting to the pump by means of two hollow screws
- Sturdy steel and brass construction
- Adjustable locknut to control the max pressure
- DISTANCE X:5 Y:53-66 (adjustable Y) with KIT(*) 4073900002
- DISTANCE X:25 Y:62-75 (adjustable Y) with KIT(*) 4073900004
(*) = The VRF2 BANJO KIT is not included and must be purchased separately. Please refer to the catalog for available versions.
