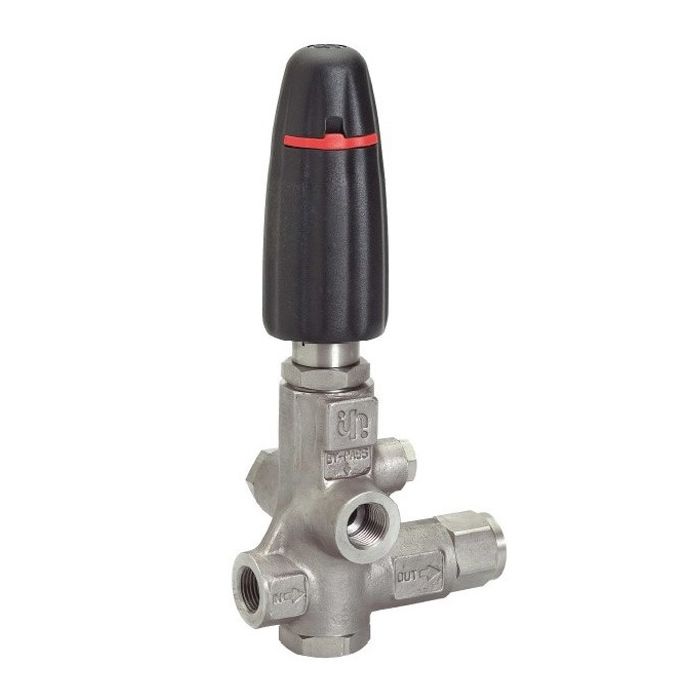

UNLOADER REGULATING VALVE H560 G 1/2" F +KNOB +P.Gauge SS 420 - 500 BAR - ZKH560
UNLOADER REGULATING VALVE H560 G 1/2" F +KNOB +P.Gauge SS 420 - 500 BAR 60 LPM
| SKU | ZKH560 |
|---|---|
| Manufacturer SKU | ZKH560-000 |
| Thread tipe | F |
| Thread | 1/2" - 1/2" |
| Connections | IN G 1/2" F - OUT G 1/2" F |
| Bypass | G 1/2" F |
| Gauge connection | G 1/4" F |
| Rated Pressure | 500 BAR - 50 MPa - 7250 psi |
| Rated Flow Rate | 60 l/min - 15.8 USGpm |
| Rated Temperature | 60 °C - 140 °F |
| Pressure type category | High pressure |
| Material | S.Steel |
| Plastic knob (P.Regulators) | Yes |
| Manufacturer/Brand | Interpump |
| Made in | Italy |
UNLOADER REGULATING VALVE H560 G 1/2" F +KNOB +P.Gauge SS 420 - 500 BAR 60 LPM
The H560 Unloader Valve is a reliable and durable pressure control valve designed for high-performance pressure washing systems. Rated for a maximum pressure of 500 BAR and a flow rate of 60 LPM, this unloader valve is suitable for demanding applications requiring precision and reliability. Built with Stainless Steel AISI 420, it ensures durability and long-lasting performance, even under harsh conditions.
The trapped pressure valve design helps regulate pressure efficiently, while the regulator knob allow for easy adjustments. The 1/2" G (BSPF) inlet, outlet, and bypass ports provide compatibility with a variety of setups. With a temperature rating of up to 60°C*, the VRT3 Unloader is capable of handling high-temperature water applications effectively.
* The valve is designed for continuous use at max. 60°C (140°F).
Key Features:
- Pressure Rating: Up to 500 Bar for demanding applications.
- Flow Rate: Maximum flow of 60 Lpm.
- Temperature Resistance: Handles water temperatures up to 60°C*.
- Durable Build: Stainless Steel AISI 420 construction for long-term durability.
- Adjustable Design: Regulator knob for precise control.
- Connections: 1/2" G (BSPF) inlet, outlet, and bypass ports for compatibility.
- With Gauge Port: Streamlined design with a 1/4" G (BSPF) gauge port.
