RF1 FLOW Regulator 1/4 BspM-F 250 BAR 30 LPM Brass - 29.0400.10
RF1 FLOW Regulator 1/4 BspM-F 250 BAR 30 LPM Brass
| SKU | 29.0400.10 |
|---|---|
| Manufacturer SKU | 29.0400.10 |
| Model | RF1 |
| Thread tipe | M |
| Thread | 1/4" - 1/4" |
| Connections | IN G1/4"M - OUT G1/4" F |
| Rated Pressure | 250 BAR - 25 MPa - 3625 psi |
| Rated Flow Rate | 30 l/min - 8 USGpm |
| Rated Temperature | 160 °C - 320 °F |
| Pressure type category | High pressure |
| Swivel | No |
| Material | Brass |
| Manufacturer/Brand | P.A. Italy |
RF1 FLOW Regulator 1/4 BspM-F 250 BAR 30 LPM Brass

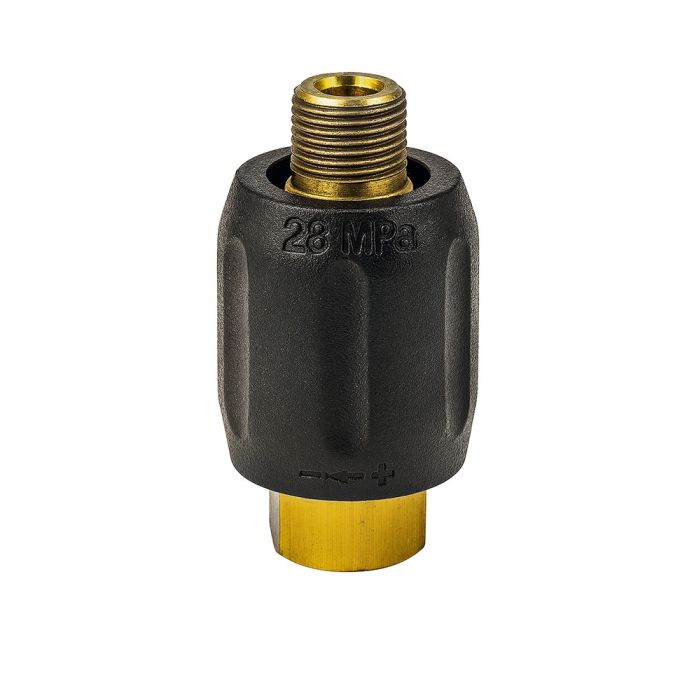

Compact and reliable, the RF1 features an internal variable-geometry restrictor operated via a reinforced plastic knob.
It allows continuous and precise flow adjustment without modifying the pump or valve settings, making it ideal for applications requiring fine control of pressure and flow rate.
Built from durable brass with a heat-resistant knob, it handles hot water up to 160 °C(*), pressures up to 250 BAR(**), and flow rates up to 30 l/min. Perfect for industrial cleaning systems, agricultural machinery, and high-pressure installations.
(*) The accessory is designed for continuous use with water at 90°C (195°F). It can withstand a maximum temperature of 160°C (320°F) only for short periods.
(**) Permissible Pressure: 280 BAR - 25 MPa - 4050 psi
