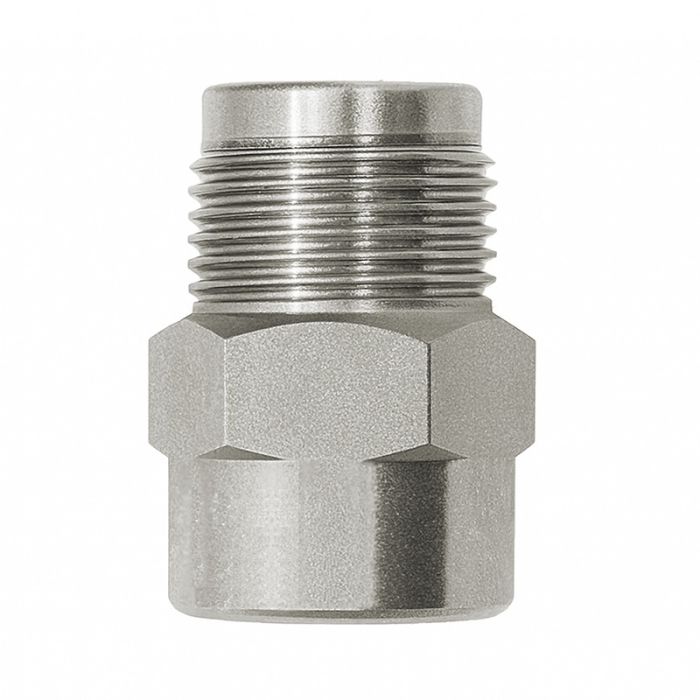

MVG06 Coupling w/Swivel G1/2M G3/8F OR Viton - 0212000120
€4.00
In stock
SKU
0212000120
MVG06 Coupling w/Swivel G1/2M G3/8F OR Viton
| SKU | 0212000120 |
|---|---|
| Manufacturer SKU | 0212000120 |
| Model | MVG 06 |
| Thread tipe | FM |
| Thread | 3/8" - 1/2" |
| Connections | IN G3/8"F OUT G1/2" M |
| Rated Pressure | 250 BAR - 25 MPa - 3625 psi |
| Rated Flow Rate | 40 l/min - 10 USGpm |
| Rated Temperature | 150 °C - 300 °F |
| Pressure type category | High pressure |
| Swivel | Yes |
| Material | Brass |
| Manufacturer/Brand | TecoMec |
| Made in | Italy |
MVG06 Coupling w/Swivel G1/2M G3/8F OR Viton
Technical Features – MVG Quick Coupling:
- Connection thread to swivel: G 1/2 M
- Rated pressure: 250 bar (25 MPa / 3600 psi)
- Maximum allowable pressure: 280 bar (28 MPa / 4060 psi)
- Rated flow rate: 40 l/min (10.6 USGpm)
- Rated temperature: 150 °C (302 °F)
- Fitting material: zinc-plated brass
- Available variants:
-
G 1/2 F
-
G 1/2 M
-
G 3/8 F
-
G 1/4 F
-
G 3/8 M
-
G 1/4 M
-
