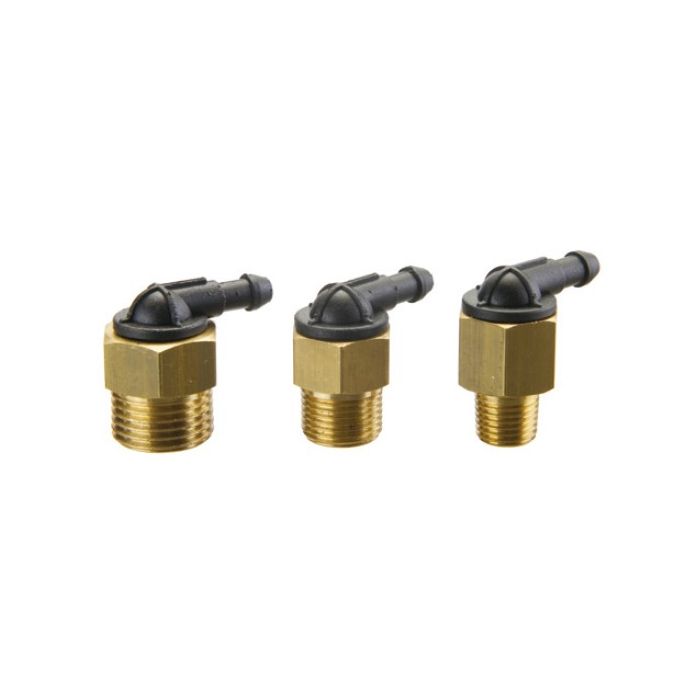

ML610 Thermal relief Valve 56°C G 1/2"M -10 BAR 30 LPM - 0215010440

ML610 Thermal relief Valve 56°C G 1/2"M -10 BAR 30 LPM

• Permissible pressure: up to 10 bar (145 psi)
• Rated flow: 30 l/min (8 USGpm)
• Brass body - Inlet G 1/2" M - Drain hole Ø 7.5mm
• Minimum suction pressure: 0.5 bar (7.3 psi)

The ML610 thermal valve is designed to protect pressure pumps by automatically releasing water when the system reaches a critical temperature. Here's how it works:

• Purpose: Prevents overheating in pressure washer systems, especially during prolonged standby or low-flow conditions.

• Activation: When the water inside the pump reaches the rated temperature of 56 °C (133 °F), the valve opens slightly to release hot water and allow cooler water to enter.

• Cooling Effect: This continuous exchange helps stabilize the internal temperature of the pump, avoiding damage to seals, pistons, and other components.

• Automatic Reset: Once the temperature drops below the threshold, the valve closes again, restoring normal operation.

This valve is essential for maintaining pump longevity and ensuring safe operation in professional cleaning systems.
