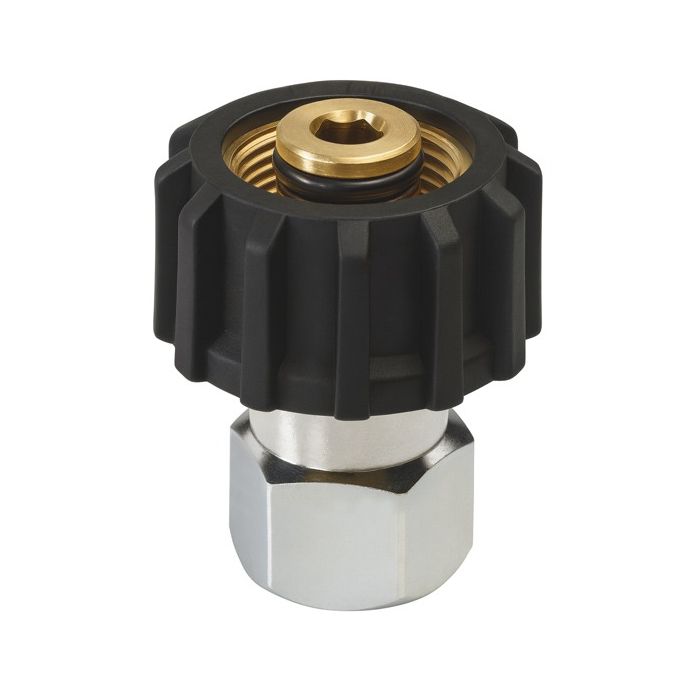

ARF "3P" QUICK COUPLING SHORT 3/8 BspF M22x1.5F 250 BAR - 300305
ARF "3P" QUICK COUPLING SHORT 3/8 BspF M22x1.5F 250 BAR 40 LPM
| SKU | 300305 |
|---|---|
| Manufacturer SKU | 300305 |
| Model | ARF "3P" |
| Thread tipe | F |
| Thread | 3/8" |
| Connections | IN G3/8"F OUT M22×1,5 M d.14 |
| Rated Pressure | 250 BAR - 25 MPa - 3625 psi |
| Rated Flow Rate | 40 l/min - 10 USGpm |
| Rated Temperature | 150 °C - 300 °F |
| Pressure type category | High pressure |
| Swivel | Yes |
| Material | Brass |
| Manufacturer/Brand | TecoMec |
| Made in | Italy |
ARF "3P" QUICK COUPLING SHORT 3/8 BspF M22x1.5F 250 BAR 40 LPM
The ARF 3P SHORT quick coupling is the ideal solution for high-pressure connections in professional cleaning systems. Engineered for durability, secure sealing, and ease of use, it features a compact design and is compatible with M22x1.5 F fittings. Available in multiple inlet configurations (G 1/4, G 3/8, G 1/2 – male or female), it adapts to a wide range of setups.
-
Nominal pressure: 250 bar (3625 psi)
-
Max pressure: 280 bar (4060 psi)
-
Flow rate: 40 l/min
-
Max temperature: 150 °C (300 °F)
-
High-quality seals: Viton® + BR (Butadiene Rubber) for long-lasting performance
Perfect for pressure washers, wash systems, and industrial applications, the ARF 3P SHORT combines high performance with robust construction in a compact format. Trust Italian made couplings for fast, secure, and professional-grade connections.
ARF 3P available versions:
| Code | Inlet | Outlet |
|---|---|---|
| 300302 | G 1/4 M | M22x1.5 F |
| 300303 | G 1/4 F | M22x1.5 F |
| 300304 | G 3/8 M | M22x1.5 F |
| 300305 | G 3/8 F | M22x1.5 F |
| 4100400000 | G 1/2 M | M22x1.5 F |
| 4100400001 | G 1/2 F | M22x1.5 F |
