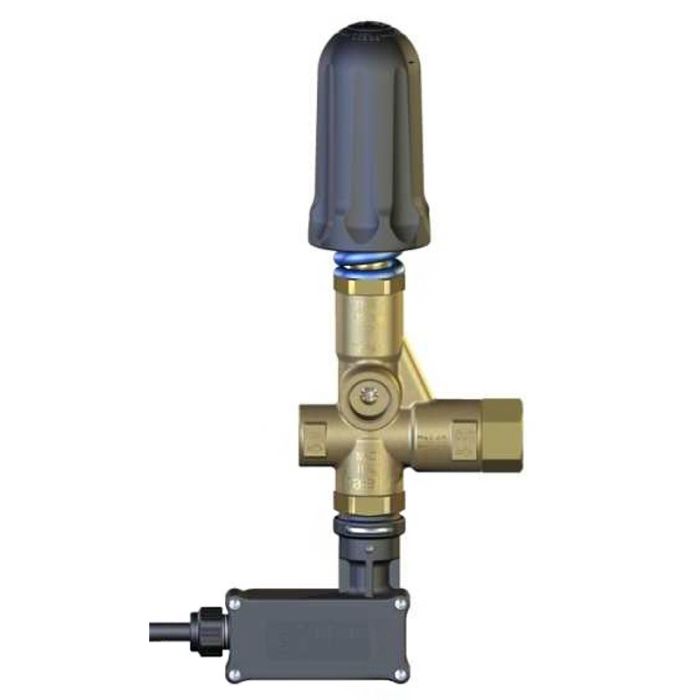

UNLOADER VALVE PULSAR RV G3/8F W/KNOB+MICRO 280 BAR - 60.0006.60
€115.90
In stock
SKU
60.0006.60
UNLOADER VALVE PULSAR RV 280 BAR G3/8F W/PRG+MICRO 280 BAR - 40 LPM
Unloader with integrated micro switch. Blue spring and Knob.
SKU | 60.0006.60 |
---|---|
Manufacturer SKU | 60.0006.60 |
Thread tipe | F |
Thread | 3/8" - 3/8" |
Connections | IN G3/8" F - OUT G3/8" F |
Rated Pressure | 280 BAR - 28 MPa - 4050 psi |
Rated Flow Rate | 40 l/min - 10 USGpm |
Rated Temperature | 90 °C - 195 °F |
Pressure type category | High pressure |
Material | Brass |
Plastic knob (P.Regulators) | Yes |
Manufacturer/Brand | P.A. Italy |
Made in | Italy |
UNLOADER VALVE PULSAR RV 280 BAR G3/8F W/PRG+MICRO 280 BAR - 40 LPM
Unloader with integrated micro switch, which is actuated by the piston of the unloader when a pre-determined, pre-set pressure level is reached. The piston opens or closes the electric control. At gun closure, the water flow is discharged in bypass reducing the pressure in the system upstream of the unloader.
The valve has been designed for a continuous use with water at a temperature of 60°C (140°F). It can work for
short periods with water at the maximum temperature of 90°C (195°F).
- Optimized internal passages that guarantee reduced pressure loss.
- Antirotation device of the piston positioned inside the valve and obtained by an hexagonal sector of the piston itself.
- O-rings of the fittings positioned upstream to the thread: no risk of fittings ejected in case of overpressure.
- Double bypass connection.
- Isolating class IP55
- Electrical switch controlled mechanically by the unloader piston
2 positions:
1. Unloader working in pressure
2. Unloader with whole water flow in by-pass
