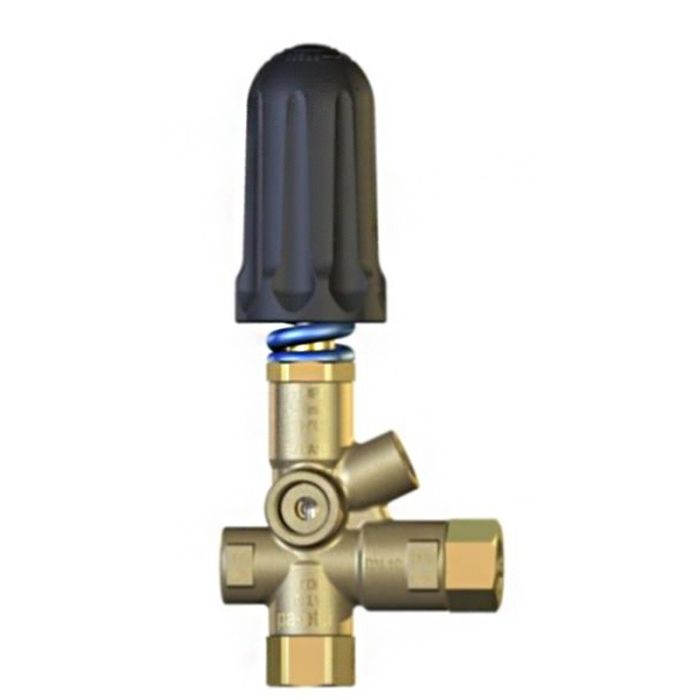

UNLOADER VALVE PULSAR RV 280BAR G3/8F W/KNOB+ PRG.HOLE - 60.0016.60
€84.80
In stock
SKU
60.0016.60
UNLOADER VALVE PULSAR RV G3/8F+FORO G1/4-31MPa+MAN 280 BAR
Pressure regulating valve with gauge port (Unloader) - Blue spring with knob
| SKU | 60.0016.60 |
|---|---|
| Manufacturer SKU | 60.0016.60 |
| Thread tipe | F |
| Thread | 3/8" - 3/8" |
| Connections | IN G3/8" F - OUT G3/8" F |
| Gauge connection | G 1/4" F |
| Rated Pressure | 280 BAR - 28 MPa - 4050 psi |
| Rated Flow Rate | 40 l/min - 10 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | Yes |
| Manufacturer/Brand | P.A. Italy |
| Made in | Italy |
UNLOADER VALVE PULSAR RV G3/8F+FORO G1/4-31MPa+MAN 280 BAR
Pressure regulating valve with gauge port (Unloader) - Blue spring with knob
At gun closure, the waterflow is discharged in bypass
reducing the pressure in the system upstream of the valve.
The valve has been designed for a continuous use with water at a temperature of 60°C (140°F). It can work for
short periods with water at the maximum temperature of 90°C (195°F).
- Optimized internal passages that guarantee reduced pressure loss.
- Antirotation device of the piston positioned inside the valve and obtained by a hexagonal sector of the piston itself.
- O-rings of the fittings positioned upstream to the thread: no risk of fittings ejected in case of overpressure.
- Double feed connection.
- Version with knob fitted with locknut for minimum working pressure adjustment.
- G1/4” F gauge port connexion.
