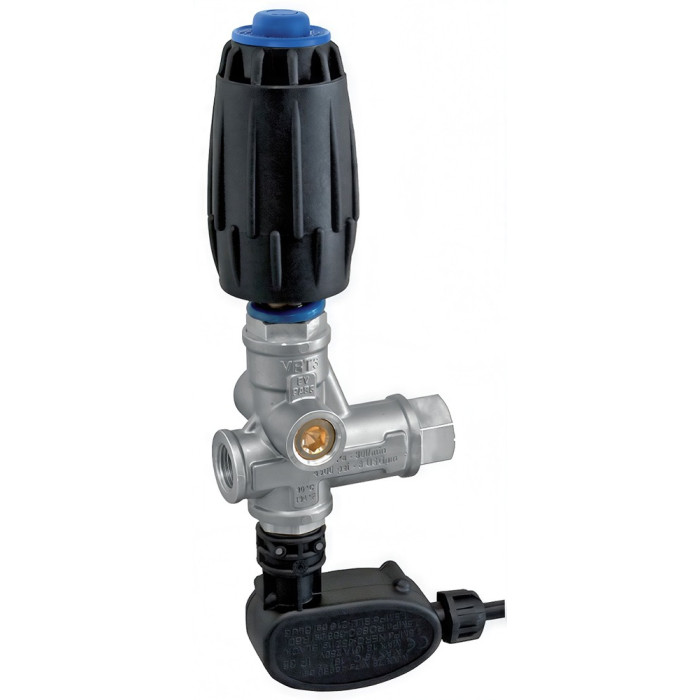

UNLOADER VALVE VRT3-P 3/8 BspF + MICRO SWITCH Nickel 250 BAR - 4072000111

UNLOADER VALVE VRT3 3/8" BspF + MICRO SWITCH (BLUE spring) - 250 BAR - 40 LPM - Nickel-plated brass

The VRT3-P Unloader Valve is a reliable and durable pressure control valve designed for high-performance pressure washing systems. Rated for a maximum pressure of 250 BAR and a flow rate of 40 LPM, this unloader valve is suitable for demanding applications requiring precision and reliability. Built with nickel-plated brass and steel construction, it ensures durability and long-lasting performance, even under harsh conditions.

The trapped pressure valve design helps regulate pressure efficiently, while the blue cap and spring with regulator knob allow for easy adjustments. The 3/8" G (BSPP) F inlet, outlet, and bypass ports provide compatibility with a variety of setups. With a temperature rating of up to 90°C*, the VRT3-P Unloader is capable of handling high-temperature water applications effectively.

* The valve is designed for continuous use at 90°C (194°F).

Key Features:

• Pressure Rating: Up to 220 Bar for demanding applications.

• Admissible pressure: Up to 250 Bar for demanding applications.

• Flow Rate: Maximum flow of 40 Lpm.

• Temperature Resistance: Handles water temperatures up to 90°C*.

• Durable Build: Nickel-plated Brass and 303 Stainless Steel construction, ceramic ball, HR O-ring for long-term durability.

• Adjustable Design: Blue cap and spring with regulator knob for precise control.

• Connections: 3/8" G (BSPP) F inlet, outlet, and bypass ports for compatibility.

PRESSURE SWITCH SPECIFICATIONS:

• Voltage: 250 V

• Micro switch: 16(6)A

• Electrical cable: 1200mm (3x1mm²)

Function of the Microswitch on the Unloader Valve

• Position-based activation: The microswitch detects the mechanical shift of the valve between working and bypass modes, triggered by pressure changes.

• Electrical signal output: It sends a signal (typically 16A at 250V) to start or stop the motor.
  > For single-phase motors, this signal can directly interrupt power.
  > For three-phase motors, an additional control board or relay is required to properly stop the motor.

• Safety and automation: This integration helps prevent dry running, reduces energy consumption, and enables synchronized control in automated cleaning systems.
