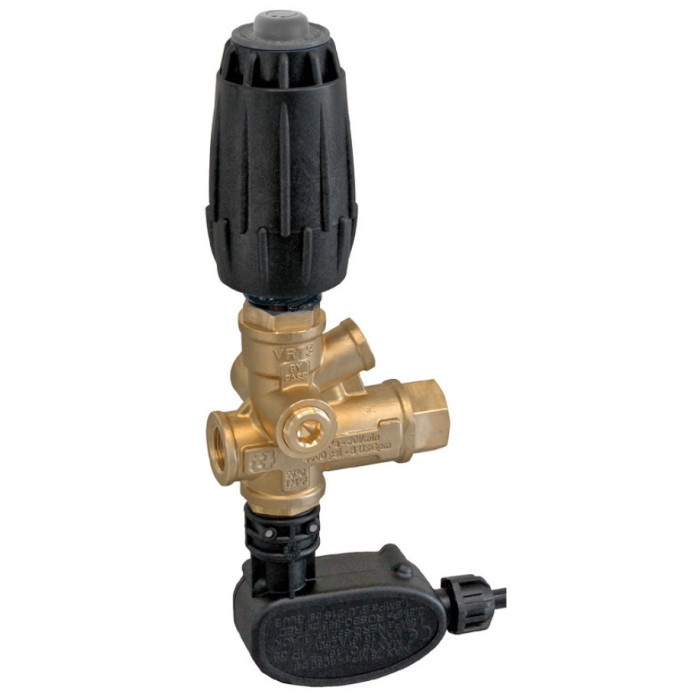

UNLOADER VALVE VRT3 G3/8F G3/8F + MICRO SWITCH + PG - 310 BAR - 4072000039
UNLOADER VALVE VRT3 G3/8F G3/8F + MICRO SWITCH + Gauge connection 1/4 BspF (BLACK spring) - 310 BAR - 40 LPM
| SKU | 4072000039 |
|---|---|
| Manufacturer SKU | 4072000039 |
| Thread tipe | F |
| Thread | 3/8" - 3/8" |
| Connections | IN G3/8" F - OUT G3/8" F - BYPASS 2x G3/8" F - Man. G1/4F |
| Gauge connection | G 1/4" F |
| Rated Pressure | 310 BAR - 31 MPa - 4500 psi |
| Rated Flow Rate | 40 l/min - 10 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | Yes |
| Manufacturer/Brand | TecoMec |
| Made in | Italy |
UNLOADER VALVE VRT3 G3/8F G3/8F + MICRO SWITCH + Gauge connection 1/4 BspF (BLACK spring) - 310 BAR - 40 LPM
ELECTRICAL SPECIFICATIONS SWITCH:
- Voltage: 250 V
- Micro switch: 16(6)A
- Electrical cable: 1200mm (3x1mm²)
Function of the Microswitch on the Unloader Valve
-
Position-based activation: The microswitch detects the mechanical shift of the valve between working and bypass modes, triggered by pressure changes.
-
Electrical signal output: It sends a signal (typically 16A at 250V) to start or stop the motor.
> For single-phase motors, this signal can directly interrupt power.
> For three-phase motors, an additional control board or relay is required to properly stop the motor. -
Safety and automation: This integration helps prevent dry running, reduces energy consumption, and enables synchronized control in automated cleaning systems.
