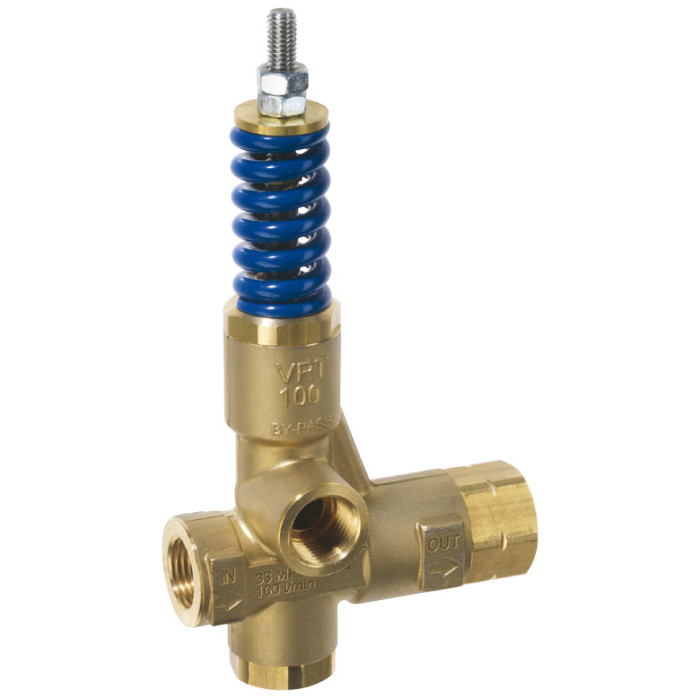

UNLOADER VALVE VRT100 HIGH FLOW G1/2F 350 BAR - 4072000034

UNLOADER VALVE VRT100 HIGH FLOW G1/2F - 350 BAR 100 LPM

The VRT100 Unloader Valve is a reliable and durable pressure control valve designed for high-performance pressure washing systems. Rated for a maximum pressure of 350 BAR and a flow rate of 100 LPM, this unloader valve is suitable for demanding applications requiring precision and reliability. Built with brass and steel construction, it ensures durability and long-lasting performance, even under harsh conditions.

The trapped pressure valve design helps regulate pressure efficiently, while the BLUE spring allow for easy adjustments. The 1/2" G (BSPF) inlet, outlet, and bypass ports provide compatibility with a variety of setups. With a temperature rating of up to 90°C*, the VRT3 Unloader is capable of handling high-temperature water applications effectively.

* The valve is designed for continuous use at 60°C (140°F). Can withstand for short periods at a maximum temperature of 90°C (194°F).

Key Features:

• Pressure Rating: Up to 320 Bar - 32 MPa - 4640Psi for demanding applications.
• Permissible Pressure: Up to 350 Bar - 35 MPa - 5075 Psi for demanding applications.
• Flow Rate: Maximum flow of 100 Lpm.
• Temperature Resistance: Handles water temperatures up to 90°C*.
• Durable Build: Brass and steel construction for long-term durability.
• Adjustable Design: Yellow spring with regulator knob for precise control.
• Connections: 1/2" G (BSPF) inlet, outlet, and bypass ports for compatibility.
• No Gauge Port: Streamlined design without a gauge port.
