UNLOADER VALVE VHP18/160 3/4" BspF 3/4" BspF 180 BAR - 160 LPM Brass - 4072000114
UNLOADER VALVE VHP 31/250 G1/2"F - G1/2"F 640/700 BAR 250 LPM - BRASS
| SKU | 4072000114 |
|---|---|
| Manufacturer SKU | 4072000114 |
| Thread tipe | F |
| Thread | 3/4" - 3/4" |
| Connections | IN G3/4" F - OUT G3/4" F |
| Bypass | G3/4" F |
| Rated Pressure | 180 BAR - 18 MPa - 2610 psi |
| Rated Flow Rate | 160 l/min - 42.3 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | No |
| Manufacturer/Brand | TecoMec |
| Made in | Italy |
UNLOADER VALVE VHP 18/160 G1/2"F - G1/2"F 640/700 BAR 250 LPM - BRASS

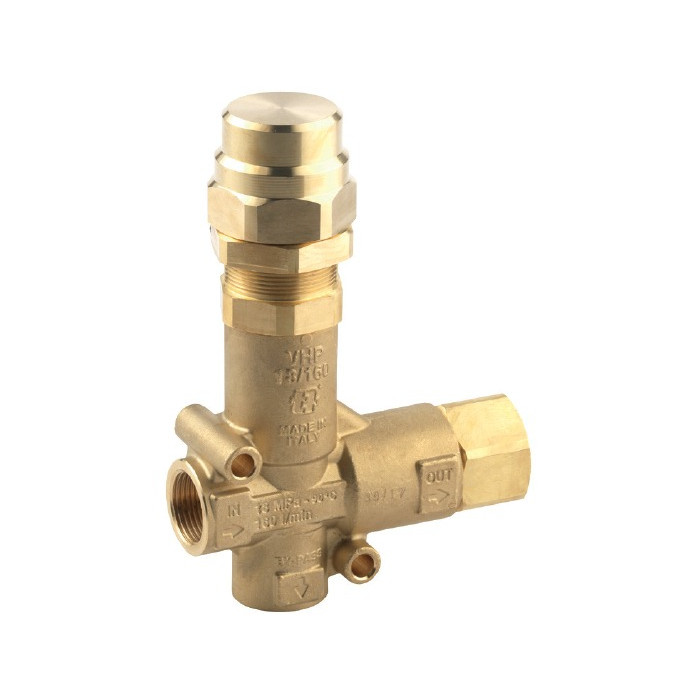

The VHP18/160 Unloader Valve is a reliable and durable pressure control valve designed for high-performance pressure washing systems. Rated for a maximum pressure of 180 BAR and a flow rate of 160 LPM, this unloader valve is suitable for demanding applications requiring high flow rates. Built with brass construction, it ensures durability and long-lasting performance, even under harsh conditions.
The trapped pressure valve design helps regulate pressure efficiently, while the gray spring allow for easy adjustments. The 3/4" G (BSPF) inlet, outlet, and bypass ports provide compatibility with a variety of setups. With a temperature rating of up to 90°C*, the VHP Unloader is capable of handling high-temperature water applications effectively.
* The valve is designed for continuous use at 60°C (140°F). Can withstand for short periods at a maximum temperature of 90°C (194°F).
Key Features:
- Pressure Rating: Up to 180 Bar for demanding applications.
- Flow Rate: Maximum flow of 160 Lpm.
- Temperature Resistance: Handles water temperatures up to 90°C*.
- Durable Build: Brass construction for long-term durability.
- Adjustable Design: Gray spring for precise control.
- Connections: 3/4" G (BSPF) inlet, outlet, and bypass ports for compatibility.
