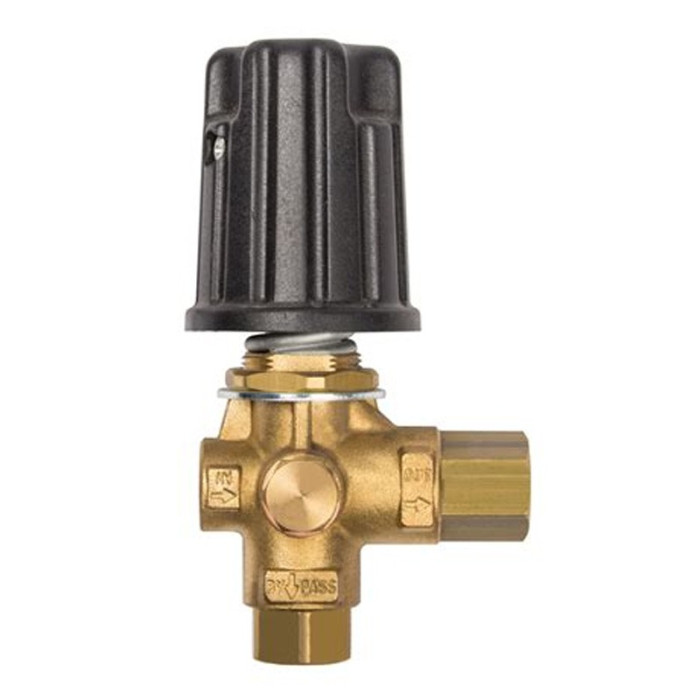

UNLOADER VALVE VB9 +KNOB +CONNECTOR TO PANEL +ADJUST - 220 BAR - 60.2250.00
€100.80
In stock
SKU
60.2250.00
UNLOADER VALVE VB9 +KNOB +CONNECTOR TO PANEL +ADJUST - 220 BAR
*** PANEL MOUNTING ***
| SKU | 60.2250.00 |
|---|---|
| Manufacturer SKU | 60.2250.00 |
| Thread tipe | F |
| Thread | 3/8" - 3/8" |
| Connections | IN G3/8" F - OUT G3/8" F - BYPASS G3/8" F |
| Rated Pressure | 280 BAR - 28 MPa - 4050 psi |
| Rated Flow Rate | 30 l/min - 8 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | Yes |
| Manufacturer/Brand | P.A. Italy |
| Made in | Italy |
UNLOADER VALVE VB9 +KNOB +CONNECTOR TO PANEL +ADJUST - 220 BAR
*** PANEL MOUNTING ***
Pressure regulating unloader valve with port for pressure gauge.
At gun shut off, the water flow is bypassed at reduced pressure.
The valve has been designed for a continuous use at a water temperature of 60°C. It can resist for short periods at a maximum temperature of 90°C.
- Sturdy steel and brass construction
- Resetting of bypass at around 40 bar – 4 MPa which allows periods of non labour before the release for bypass setting.
- Hexagonal shaped check valve to avoid jamming.
- Version with knob, fitted with locknuts for min. and max. pressure regulation.
