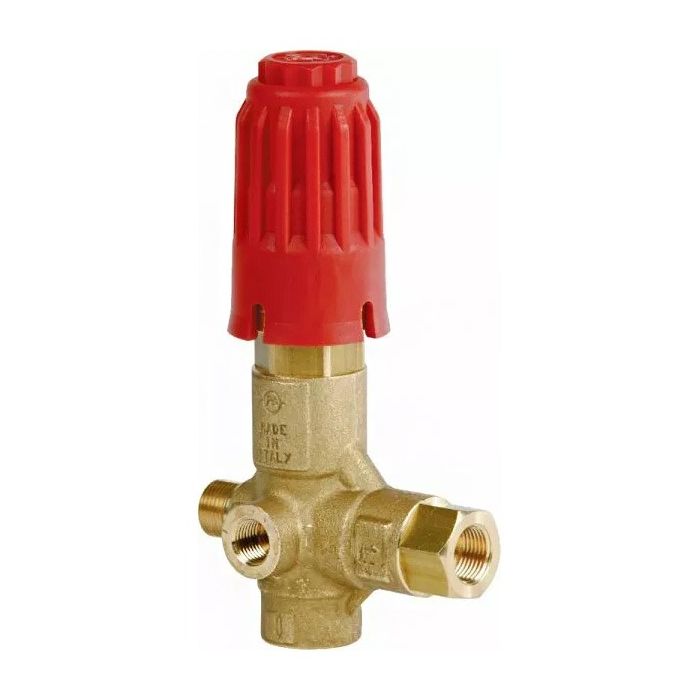

UNLOADER VALVE VB350 3/8MF +KNOB 350 BAR - 60.1700.00
€113.40
In stock
SKU
60.1700.00
UNLOADER VALVE VB350 3/8MF +KNOB 350 BAR - 40 LPM
| SKU | 60.1700.00 |
|---|---|
| Manufacturer SKU | 60.1700.00 |
| Thread tipe | F |
| Thread | 3/8" - 3/8" |
| Connections | IN G3/8" F - OUT G3/8" F |
| Rated Pressure | 350 BAR - 35 MPa - 5100 psi |
| Rated Flow Rate | 40 l/min - 10 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | Yes |
| Manufacturer/Brand | P.A. Italy |
| Made in | Italy |
UNLOADER VALVE VB350 3/8MF +KNOB 350 BAR - 40 LPM
Pressure regulating unloader valve.
At gun shut off, the water flow is bypassed at reduced pressure.
The valve has been designed for a continuous use at a water temperature of 60°C. It can resist for short periods at a maximum temperature of 90°C.
- Assembly equipped with a high pressure proof compensation.
- Compact dimensions.
- Sturdy steel and brass construction.
- Adjustable locknut to control max pressure.
- Possibility to fit a venturi injector, on delivery, for chemicals.
- Nylon knob
- By-pass G1/2 F
- Easy maintenance.
