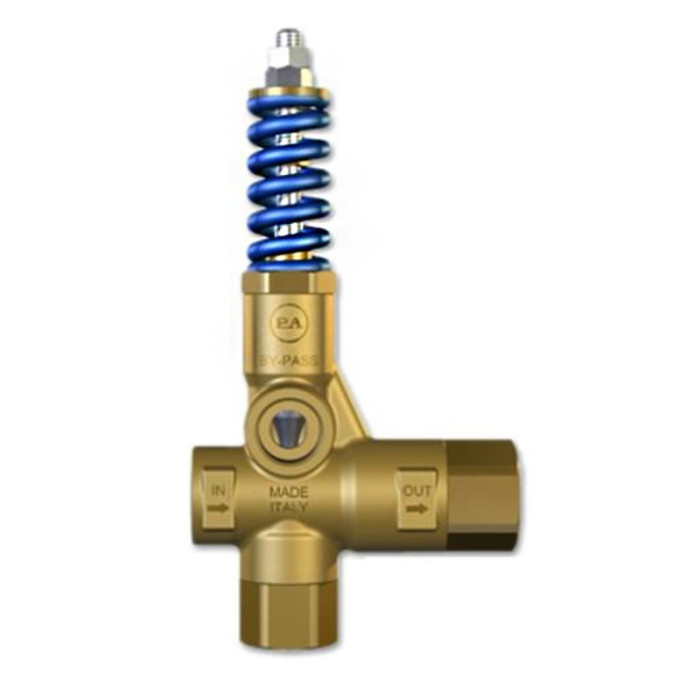

UNLOADER VALVE VB 85 G1/2F 280 BAR - 60.0423.60
€130.20
In stock
SKU
60.0423.60
UNLOADER VALVE VB 85 Rv/280 G1/2F - 280 BAR - 80 LPM
| SKU | 60.0423.60 |
|---|---|
| Manufacturer SKU | 60.0423.60 |
| Thread tipe | F |
| Thread | 1/2" - 1/2" |
| Connections | IN G1/2" F - OUT G1/2" F |
| Rated Pressure | 280 BAR - 28 MPa - 4050 psi |
| Rated Flow Rate | 80 l/min - 21 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | No |
| Manufacturer/Brand | P.A. Italy |
| Made in | Italy |
UNLOADER VALVE VB 85 Rv/280 G1/2F - 280 BAR - 80 LPM
Pressure regulating valve (Unloader).
At gun closure, the waterflow is discharged in bypass reducing the pressure in the system upstream of the valve.
The valve has been designed for a continuous use with water at a temperature of 60°C (140°F). It can work for short periods with water at the maximum temperature of 90°C (195°F).
- Dynamic seals made up of O-ring and Back-up ring.
- Optimized internal passages that guarantee reduced pressure loss.
- Antirotation device of the piston positioned inside the valve and obtained by an hexagonal sector of the piston itself.
- O-rings of the fittings positioned upstream to the thread : no risk of fittings ejected in case of overpressure.
- Double feed connection.
- Version with knob fitted with locknut for minimum working pressure adjustment.
