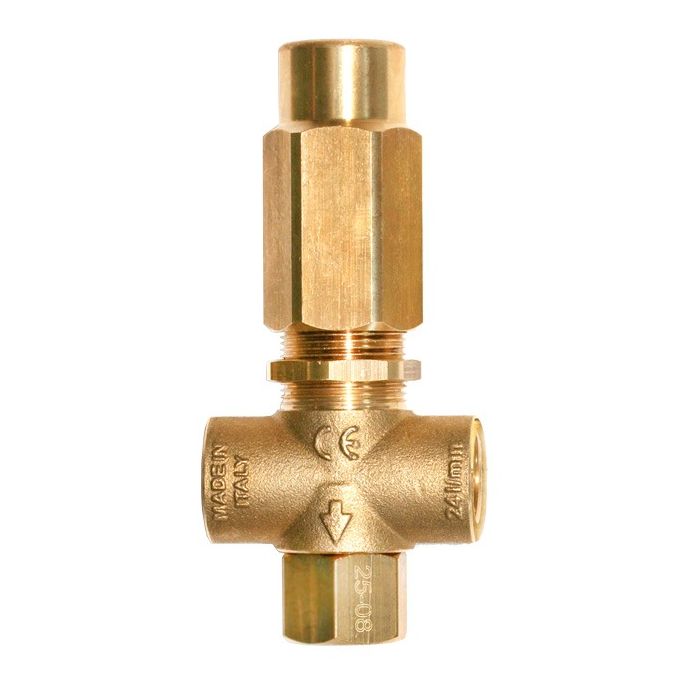

SAFETY VALVE VS220 2x G 3/8 F 220 BAR 24 LPM - 60.0525.00
€42.00
In stock
SKU
60.0525.00
SAFETY VALVE VS220 2x G 3/8 F 220 BAR 24 LPM
| SKU | 60.0525.00 |
|---|---|
| Manufacturer SKU | 60.0525.00 |
| Thread tipe | F |
| Thread | 3/8" - 3/8" |
| Connections | IN 2 x G 3/8" F |
| Bypass | G 3/8 F |
| Rated Pressure | 220 BAR - 22 MPa - 3200 psi |
| Rated Flow Rate | 24 l/min - 6.3 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | No |
| Manufacturer/Brand | P.A. Italy |
| Made in | Italy |
SAFETY VALVE VS220 2x G 3/8 F 220 BAR 24 LPM
Compensated pressure regulating valve.
Regulates the bypass of the fluid with a minimum variation of the pressure. Suitable to be utilized as a relief valve in pressure washers.
The valve has been designed for a continuous use at a water temperature of 60°C. It can resist for short periods at a maximum
temperature of 90°C.
Key features:
- Central body and fittings in brass.
- Internal components in Stainless Steel.
- Moving parts totally protected.
AS A RELIEF VALVE IN PRESSURE WASHERS:
- Secure intervention discharging all the flow.
- Prompt and effective damping against pressure spikes.
