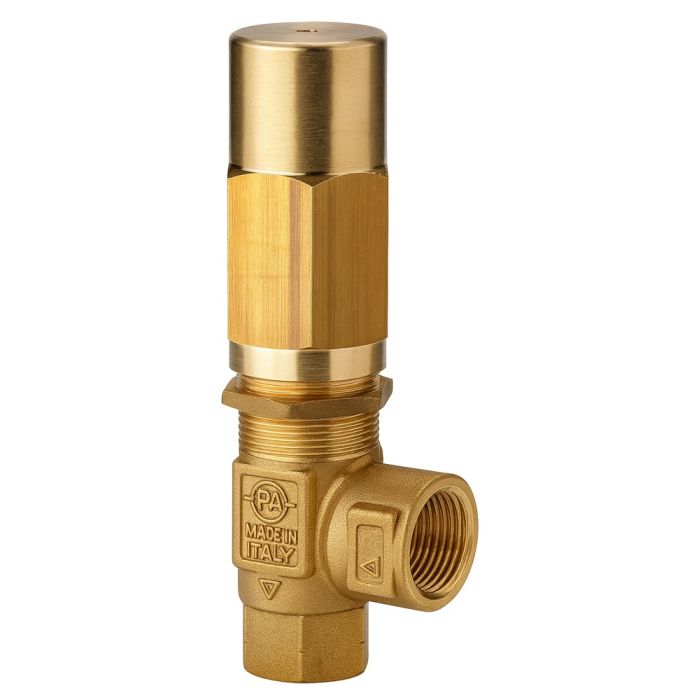

SAFETY VALVE VS200/200 G3/4 F 200 BAR 200 LPM - 60.5100.15
€107.50
In stock
SKU
60.5100.15
SAFETY VALVE VS200/200 G3/4 F 200 BAR 200 LPM
| SKU | 60.5100.15 |
|---|---|
| Manufacturer SKU | 60.5100.15 |
| Thread tipe | FF |
| Thread | 3/4" - 1/2" |
| Connections | IN G 3/4" F |
| Bypass | G (Bsp) 1/2" F |
| Rated Pressure | 200 BAR - 20 MPa - 2900 psi |
| Rated Flow Rate | 200 l/min - 53 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | No |
| Manufacturer/Brand | P.A. Italy |
| Made in | Italy |
SAFETY VALVE VS200/200 G3/4 F 200 BAR 200 LPM
Compensated pressure regulating valve.
Regulates the bypass of the fluid with a minimum variation of the pressure. Suitable to be utilized as a relief valve in pressure washers.
The valve has been designed for a continuous use at a water temperature of 60°C. It can resist for short periods at a maximum
temperature of 90°C.
Key features:
- Central body and fittings in brass.
- Internal components in Stainless Steel.
- Moving parts totally protected.
AS A RELIEF VALVE IN PRESSURE WASHERS:
- Secure intervention discharging all the flow.
- Prompt and effective damping against pressure spikes.
