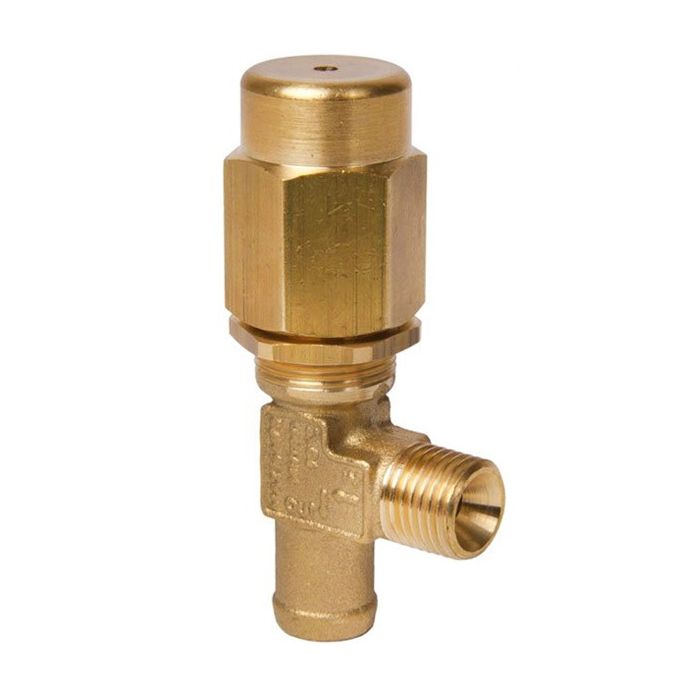

SAFETY VALVE VS160 G1/4" M - HOSE BARB 13mm 1/8" - 60.0560.00
€23.70
In stock
SKU
60.0560.00
SAFETY VALVE VS160 G 1/4" M - HOSE BARB 13 mm 1/8" - 160 BAR 14 LPM
| SKU | 60.0560.00 |
|---|---|
| Manufacturer SKU | 60.0560.00 |
| Thread tipe | M |
| Thread | 1/4" |
| Connections | IN G1/4"M |
| Bypass | G1/8 F + Hose Barb. 13mm |
| Rated Pressure | 140 Bar - 14 MPa - 2000 psi |
| Rated Flow Rate | 14 l/min - 3.7 USGpm |
| Rated Temperature | 90 °C - 195 °F |
| Pressure type category | High pressure |
| Material | Brass |
| Plastic knob (P.Regulators) | No |
| Manufacturer/Brand | P.A. Italy |
| Made in | Italy |
SAFETY VALVE VS160 G 1/4" M - HOSE BARB 13 mm 1/8" - 160 BAR 14 LPM
Compensated pressure regulating valve.
Regulates the bypass of the fluid with a minimum variation of the pressure. Suitable to be utilized as a relief valve on pressure washers.
The valve has been designed for a continuous use at a water temperature of 60°C. It can resist for short periods at a maximum
temperature of 90°C.
- Central body in brass
- Internal components in SS.
- Moving parts totally protected.
- Discharge through integrated hose barb.
- Secure intervention discharging all the flow.
