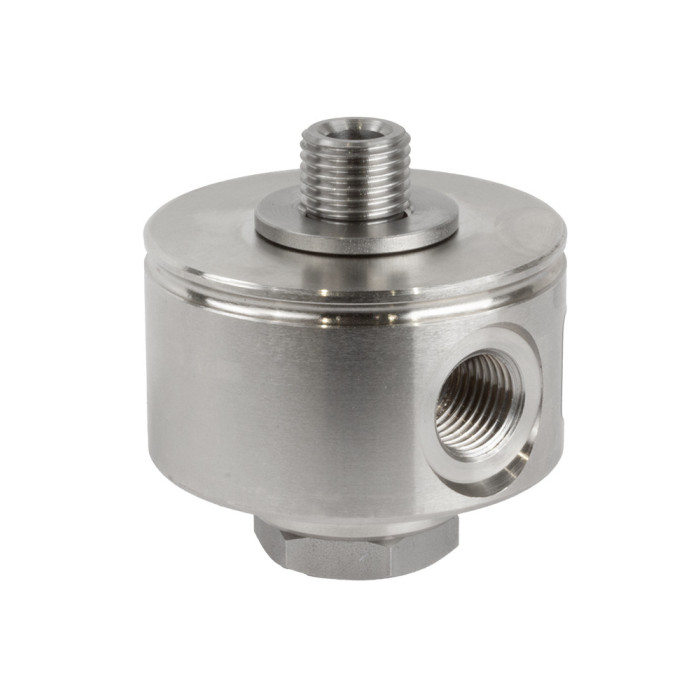

90° SWIVEL Coupling 1/4 Bsp MF Stainless Steel 280 BAR - 00018K521 - 1181050110
90° SWIVEL Coupling IN=1/4 BspM OUT=1/4 Bsp F Stainless Steel 280 BAR 40 LPM
| SKU | 00018K521 |
|---|---|
| Manufacturer SKU | 1181050110 |
| Model | MTM CW LINE |
| Thread tipe | FM |
| Thread | 1/4" - 1/4" |
| Connections | IN G1/4" M - OUT G1/4" F |
| Rated Pressure | 280 BAR - 28 MPa - 4050 psi |
| Rated Flow Rate | 40 l/min - 10 USGpm |
| Rated Temperature | 120 °C - 250 °F |
| Pressure type category | High pressure |
| Swivel | Yes |
| Material | S.Steel |
| Manufacturer/Brand | MTM |
| Made in | Italy |
90° SWIVEL Coupling IN=1/4 BspM OUT=1/4 Bsp F Stainless Steel 280 BAR 40 LPM
Carwash swivel coupling: the swivel function prevents the hose from twisting while the operator moves around the vehicle, improving comfort and safety. The 90‑degree angle also makes it easier to reach difficult areas or to better orient the connected accessory.
-
Rated pressure up to 250 BAR: ideal for high‑pressure washing
-
Permissible pressure 280 BAR: suitable for high‑pressure applications
-
Universal compatibility: standard G 1/4" M–F fittings
-
Inlet: G 1/4" male
-
Outlet: G 1/4" female
-
Durable materials: corrosion‑resistant stainless steel body
-
Made in Italy: guaranteed build quality and reliability
